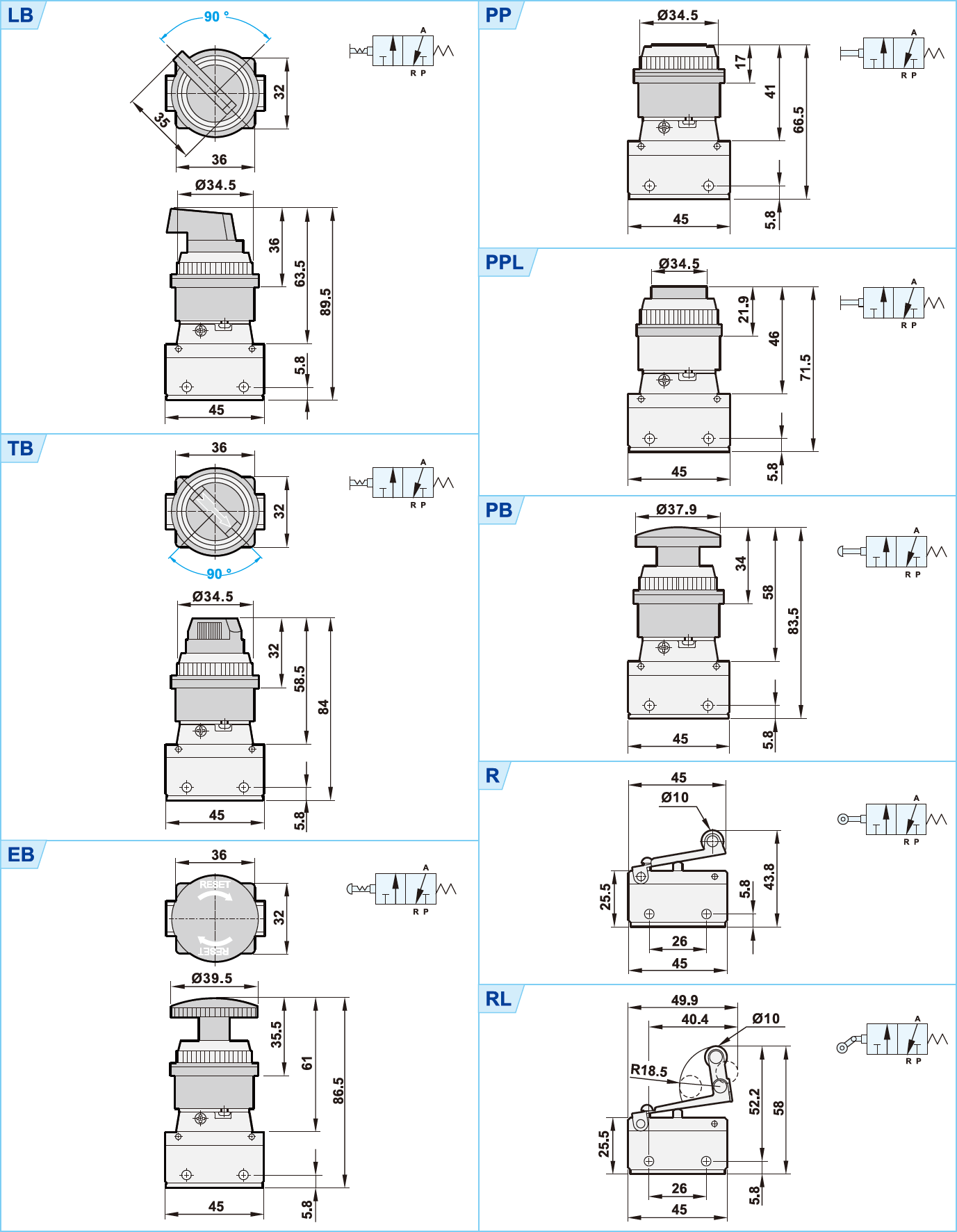

MSV8632-01R MSV8632-01TB MSV8632-01LB MSV8632-01RL SHAKO 3/2 way Mechanical Valve 1/8"

MSV8632-01R MSV8632-01TB MSV8632-01LB MSV8632-01RL SHAKO 3/2 way Mechanical Valve 1/8"

The SHAKO MSV8632 is a 3/2-way (3-port, 2-position) mechanical pneumatic valve​ designed for manual or mechanical actuation in industrial automation systems. It features a compact design with a standard 1/8-inch port size​ (available in BSP, NPT, or Rc threading) and is constructed from aluminum alloy​ for durability and light weight . This valve operates within a broad pressure range of 0 to 9 Bar​ (with a proof pressure of 10 Bar) and is designed for use with filtered compressed air or inert gases . Its effective orifice area is 1.8 mm², providing a flow capacity characterized by a Cv value of 0.67 . The valve functions as normally closed (NC) and is suitable for ambient temperatures between -10°C and +60°C​ (or 0°C to 60°C, depending on the specification).

Order Codes:

Specification:

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
